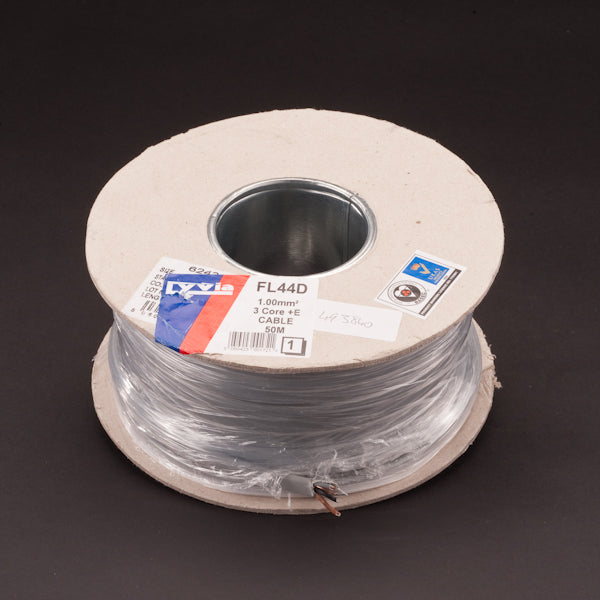

PX BASEC 3 Core Cable - Grey

The PX BASEC 3 Core Cable – Grey 1.0mm² x 50m is a versatile and reliable fixed wiring solution suitable for domestic and light commercial installations. Featuring three insulated copper conductors within a durable grey PVC sheath, this cable provides safe and flexible connections for lighting circuits, two-way switching, and other general-purpose wiring tasks.

Each conductor is colour-coded to the harmonised standard—Brown, Blue, and Green/Yellow—for live, neutral, and earth identification, and the cable is fully BASEC approved, ensuring that it meets the highest standards of British electrical safety (BS 6004).

With a compact, lightweight design and excellent handling characteristics, the PX 3 Core Cable is easy to route through conduits, walls, and trunking systems, offering long-lasting performance in both new builds and refurbishment projects.

Key Features:

1. Three Core Design (1.0mm²):
   Includes Live, Neutral, and Earth conductors, perfect for lighting and switching applications.
2. BASEC Approved & BS 6004 Compliant:
   Certified for safe and compliant fixed wiring installations.
3. Durable Grey PVC Outer Sheath:
   Offers mechanical protection and resistance to standard environmental wear and tear.
4. Flexible and Easy to Install:
   Suitable for use in trunking, conduit, and surface or concealed applications.
5. Colour-Coded Insulation:

• Brown: Live
• Blue: Neutral
• Green/Yellow: Earth
  Helps ensure proper identification during installation.

Product Specifications:

1. Product Name: PX BASEC 3 Core Cable – Grey
2. Length: 50 metres
3. Conductor Size: 1.0mm²
4. Core Count: 3 (Brown, Blue, Green/Yellow)
5. Conductor Material: Stranded copper
6. Outer Sheath Colour: Grey
7. Sheath Material: PVC
8. Voltage Rating: 300/500V
9. Max Current Rating: Approx. 13–16A (depending on installation method and conditions)
10. Standards: BASEC Approved, BS 6004
11. Boxed Weight: 4.3kg

Recommended Applications:

1. Two-way light switching systems
2. Lighting circuits with switched live
3. Boiler controls and thermostats
4. General-purpose internal wiring
5. Use in domestic, commercial, and light industrial environments

Installation Guidance:

1. Must be installed by a qualified electrician in accordance with IET Wiring Regulations (BS 7671).
2. Suitable for indoor use in dry environments.
3. Must be protected in conduit or trunking where mechanical damage is possible.
4. Ensure correct connection of colour-coded cores to their designated roles (L, N, CPC).
5. Avoid direct exposure to UV light unless protected.

FAQs (Frequently Asked Questions):

Q: What is this cable typically used for?
A: It’s ideal for two-way light switching, or where an Earth wire and switched live are required in the same cable run.

Q: Can I use this outdoors?
A: Only if routed through conduit or protective trunking. The cable itself is not UV-resistant.

Q: Is this flexible or solid core?
A: It typically features stranded copper cores, offering moderate flexibility for installation.

Q: What is the maximum current rating?
A: Approximately 13–16 amps, depending on factors such as ambient temperature and installation method.

Q: Does it come pre-sleeved with Earth insulation?
A: Yes, the Green/Yellow core is pre-insulated for use as the CPC (Earth).

Warranty Information:

The PX BASEC 3 Core Cable comes with a manufacturer’s warranty against material and manufacturing defects when used as specified. Improper installation, physical damage, or exposure to unsuitable conditions may void the warranty. Always follow BS 7671 guidelines and product specifications to ensure compliance.

Conclusion:
The PX BASEC 3 Core Cable – Grey 1.0mm² x 50m offers a safe, compliant, and easy-to-install solution for various wiring needs, especially lighting and switching circuits. With harmonised colours, BASEC approval, and durable construction, it is a trusted choice for professional and domestic electrical installations alike.
