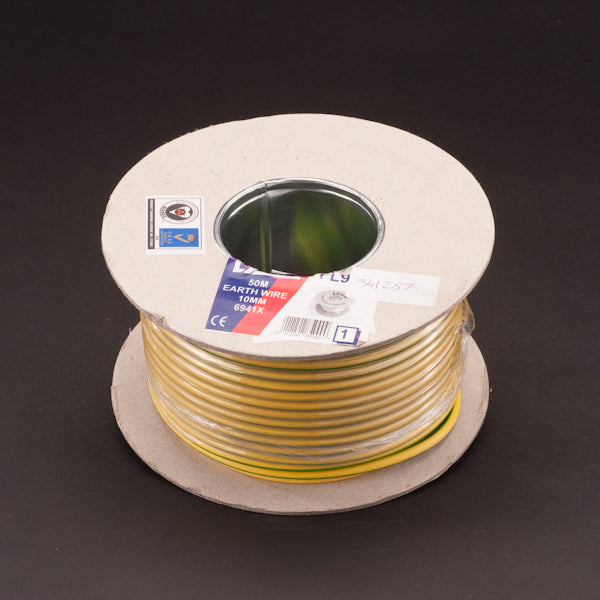

PX BASEC 1 Core Cable - Green & Yellow

The PX BASEC 1 Core Cable – Green & Yellow 10mm² x 50m is a heavy-duty earth (CPC) cable designed specifically for use in earthing and bonding applications. With a single core of high-conductivity copper and a green and yellow striped PVC insulation, this cable meets the requirements for protective conductors in both domestic and commercial fixed wiring systems.

Manufactured to BS 6004 standards and BASEC approved, the cable is suitable for use in earthing systems, equipotential bonding, and as a CPC in circuits with separate conductors. The 10mm² conductor size provides a high current-carrying capacity, making it ideal for main earth bonding of services such as gas, water, or structural steelwork, as well as for larger sub-main circuits.

Key Features:

1. Single Core 10mm² Conductor:
   Suitable for protective earth bonding and CPC (Circuit Protective Conductor) use.
2. Green & Yellow Insulation:
   Conforms to harmonised colour standards for Earth identification.
3. BASEC Approved:
   Certified by the British Approvals Service for Cables, ensuring full compliance with BS 6004.
4. High Conductivity Copper Core:
   Offers excellent electrical performance and reliability in safety-critical applications.
5. Tough PVC Insulation:
   Provides mechanical protection, flexibility, and ease of installation in various environments.

Product Specifications:

1. Product Name: PX BASEC 1 Core Cable – Green & Yellow
2. Core Size: 10mm²
3. Core Count: 1 (Earth)
4. Insulation Colour: Green & Yellow
5. Insulation Material: PVC
6. Conductor Material: High-purity stranded copper
7. Cable Type: Fixed wiring – single core
8. Length: 50 metres
9. Voltage Rating: 450/750V
10. Boxed Weight: 6.0kg
11. Standards Compliance:

• BS 6004
• BASEC Approved
• RoHS Compliant

Recommended Applications:

1. Main earthing and bonding of metal pipework, structural steel, and consumer units
2. CPC (earth wire) in conduit or trunking alongside live and neutral conductors
3. Sub-main circuits in large installations
4. EV charger earth connections, generator systems, and distribution boards
5. Equipotential bonding in commercial and industrial premises

Installation Guidance:

1. Must be installed by a qualified electrician in accordance with IET Wiring Regulations (BS 7671).
2. Suitable for indoor installation or within conduit, trunking, or containment systems.
3. The cable should be secured and protected where there is any risk of mechanical damage.
4. Can be installed alongside other single-core cables in distribution and control circuits.

FAQs (Frequently Asked Questions):

Q: What is this cable used for?
A: It is used as a dedicated earth cable, ideal for bonding gas, water pipes, structural steel, and as a main earthing conductor.

Q: Is it flexible enough for tight spaces?
A: Yes, it uses stranded copper which provides moderate flexibility, making it easier to route through confined spaces or conduits.

Q: Can this be used outdoors?
A: Only if it is protected in conduit or trunking. The PVC insulation is not UV-resistant.

Q: Is this suitable for use in EV charger installations?
A: Yes, 10mm² earthing cables are commonly used in electric vehicle charger earth bonding, provided it meets the load and bonding requirements.

Q: Why is it green and yellow?
A: This colour combination is the standard identifier for Earth conductors under UK and EU wiring regulations.

Warranty Information:

This PX BASEC 1 Core Green & Yellow cable is backed by a manufacturer’s warranty covering material and manufacturing defects under normal installation and usage. Damage due to improper installation, environmental exposure, or unauthorised modification is not covered.

Refer to packaging or contact the supplier for specific warranty terms and support.

Conclusion:
The PX BASEC 1 Core Cable – Green & Yellow 10mm² x 50m is a professional-grade solution for critical earthing and bonding tasks. With BS 6004 compliance, BASEC certification, and a robust, high-capacity copper conductor, it is ideal for ensuring electrical safety and regulatory compliance in both domestic and commercial installations.
