Securlec 1 Gang Unswitched Socket – 13A | Square Edge and Round Edge Variants

Reliable, Permanent Power Connection for Domestic, Commercial, and Fixed Appliance Installations

The Securlec 1 Gang Unswitched Socket is a high-quality, fixed wiring solution designed for installations where continuous power supply is required. Commonly used to power refrigerators, security systems, servers, and integrated appliances, this socket eliminates the need for manual switching while delivering robust safety and installation convenience.

Available in two aesthetic profiles—Square Edge and Round Edge—this socket combines functionality, durability, and a professional finish, making it ideal for both modern and traditional electrical installations.

---

Product Variants

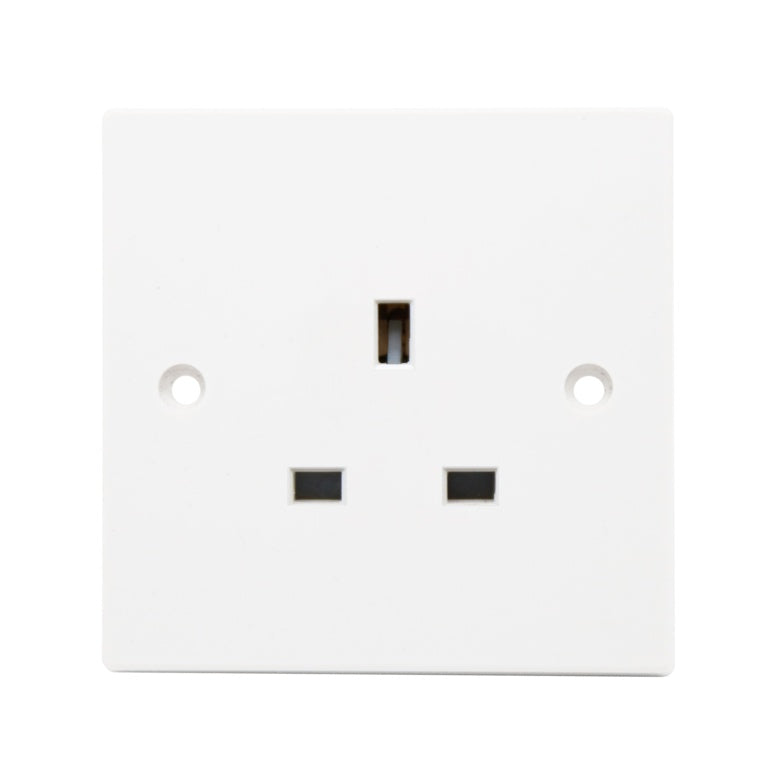

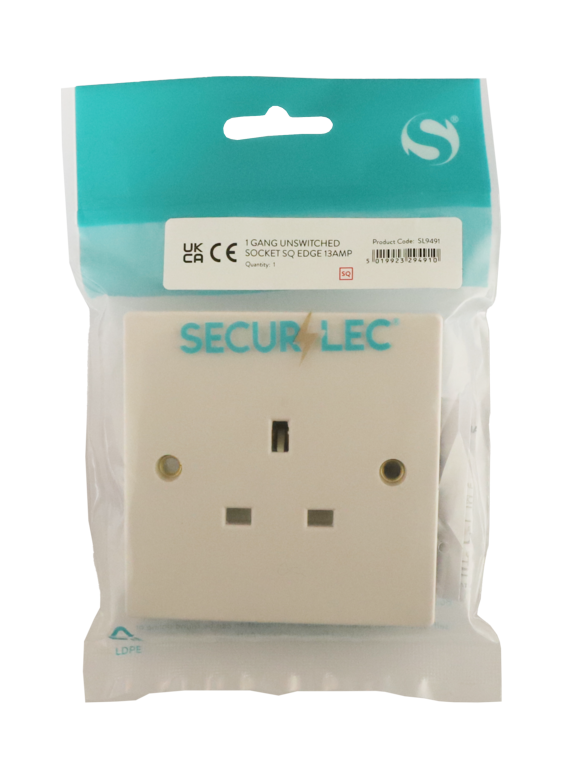

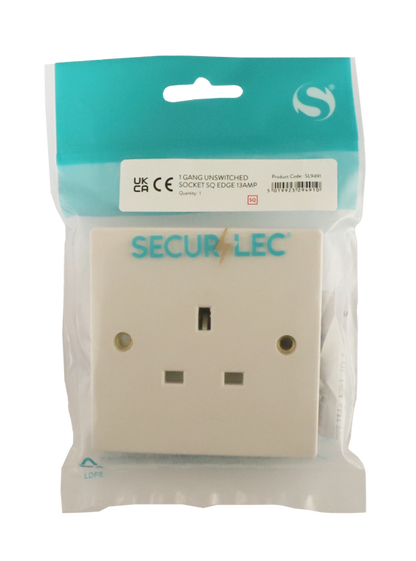

Securlec 1 Gang Unswitched Socket – Square Edge

Faceplate Size: 86mm x 86mm

Boxed Dimensions: W: 8.5cm × H: 8.5cm × D: 8.5cm

Boxed Weight: 100g

Finish: Square edge, flat-profile design

Material: Durable flame-retardant thermoplastic

Contoured Finish: Designed to blend into wall surfaces

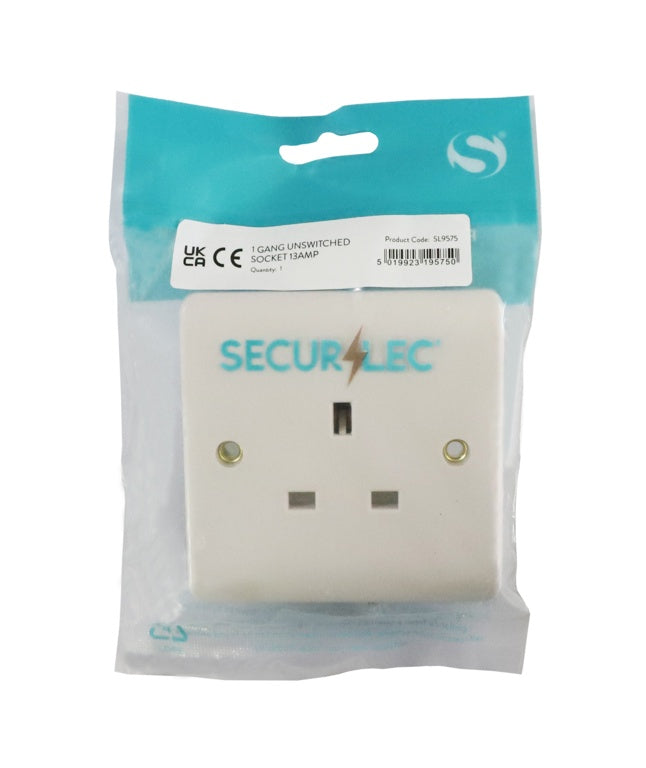

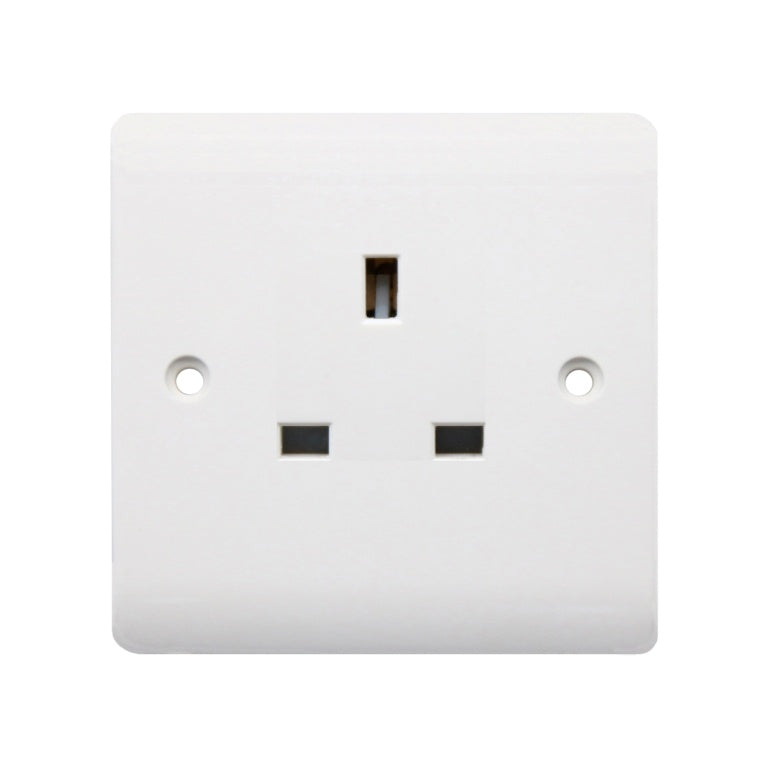

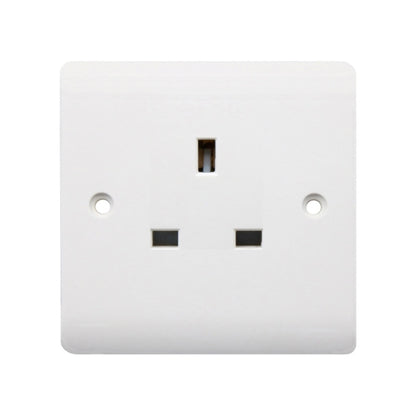

Securlec 1 Gang Unswitched Socket – Round Edge

Faceplate Size: 86mm x 86mm

Boxed Weight: 80g

Finish: Smooth curved edges

Faceplate Material: High-strength urea-formaldehyde (scratch resistant)

Standard Compliance: BS 1363-2

---

Technical Specifications (Both Variants)

Rated Voltage: 250V AC

Rated Current: 13A

Frequency: 50–60Hz

Switching: Double pole (disconnects both live and neutral connections)

Degree of Protection: IP20 (indoor use only)

Ambient Operating Temperature: -5°C to +40°C (average not exceeding 25°C over 24 hours)

Maximum Installation Altitude: 2000 metres

Terminal Capacity:

3 x 2.5mm²

2 x 4mm²

1 x 6mm²

Minimum Wall Box Depth: 25mm

Fixing Screws: M3.5 x 30mm retained by integrated earth strap

Nature of Supply: AC

---

Key Product Features

Continuous Power Supply for Fixed Appliances

This unswitched socket is designed to deliver permanent power, making it ideal for devices that should not be accidentally turned off. Suitable for refrigerators, broadband routers, servers, alarms, heating timers, and built-in kitchen appliances.

Double Pole Switching for Enhanced Safety

Internally wired to provide double pole isolation, the socket disconnects both live and neutral conductors. This improves overall circuit safety, particularly in systems where complete isolation is necessary for servicing or fault conditions.

Installer-Friendly Design

Large angled terminals allow quick wire insertion and strong grip for secure connections.

Top access terminals simplify wiring in confined spaces and shallow back boxes.

Heavily embossed terminal markings reduce wiring errors and aid fast identification.

Only one screwdriver size is needed throughout the installation process, streamlining on-site work.

Dual Earth Terminals

Dual earth provisions support flexible wiring in metal back boxes or installations requiring earth continuity across multiple points. This feature also enhances electrical safety compliance.

Retained Fixing Screws

The faceplate fixing screws are held in place by the integrated metal earth strap, preventing screw loss during installation or maintenance.

Aesthetic Options for Seamless Integration

Square Edge Version: Flat-profile and angular design, ideal for modern interiors.

Round Edge Version: Soft curved edges provide a classic appearance suited to traditional settings.
Both styles are engineered to blend discreetly with wall surfaces for a clean, professional look.

---

Common Applications

Kitchens: For powering built-in ovens, microwaves, and fridges

Server rooms and data centres: For routers, switches, and network hardware

Security and surveillance systems

Offices and workstations

Utility areas: For washing machines or ventilation systems

Hotel and commercial premises where tamper-proof, always-on connections are preferred

---

Installation Guidelines

Turn off power at the consumer unit before installation.

Fit into a standard 1-gang back box with a minimum depth of 25mm.

Insert wires into the top-access, angled terminals, tightening securely.

If using a metal back box, ensure both earth terminals are connected properly.

Fix the socket to the wall using the retained screws.

Test the circuit to ensure correct and continuous power flow.

Important: Always follow the latest edition of the IET Wiring Regulations (BS 7671) and consult a qualified electrician where necessary.

---

Frequently Asked Questions (FAQs)

Q1: What is the difference between the square edge and round edge versions?
A: The only difference is cosmetic. Both offer identical performance and functionality. Choose square edge for a modern, angular look and round edge for a more traditional curved profile.

Q2: Why would I use an unswitched socket instead of a switched one?
A: Unswitched sockets are used where appliances should remain continuously powered, reducing the risk of accidental switch-off.

Q3: Is this socket safe for high-powered devices?
A: Yes. It is rated at 13A and is suitable for all appliances that use a standard UK plug and are within that current rating.

Q4: Can I use this socket outdoors?
A: No. This socket is rated IP20, which is suitable for indoor use only. For outdoor environments, use Securlec IP66-rated weatherproof sockets.

Q5: Does this socket support compliance with UK wiring standards?
A: Yes. It complies with BS 1363-2 and includes safety features such as double pole switching, dual earth terminals, and clearly marked terminals to ensure safe, regulation-compliant installation.

---

Why Choose Securlec 1 Gang Unswitched Sockets?

Securlec sockets are engineered to deliver professional-grade performance, long-term reliability, and ease of installation. Whether you choose the sleek square edge or the smooth round edge, you can expect:

Fast, efficient installation

Robust safety features

Regulatory compliance

A clean, modern finish

Trusted by electricians and specifiers across the UK, Securlec delivers wiring accessories that meet the demands of both new builds and renovations.
