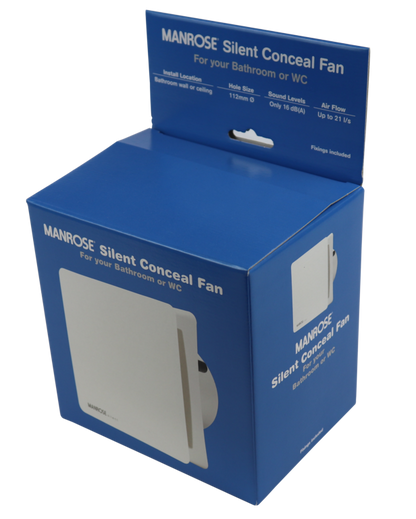

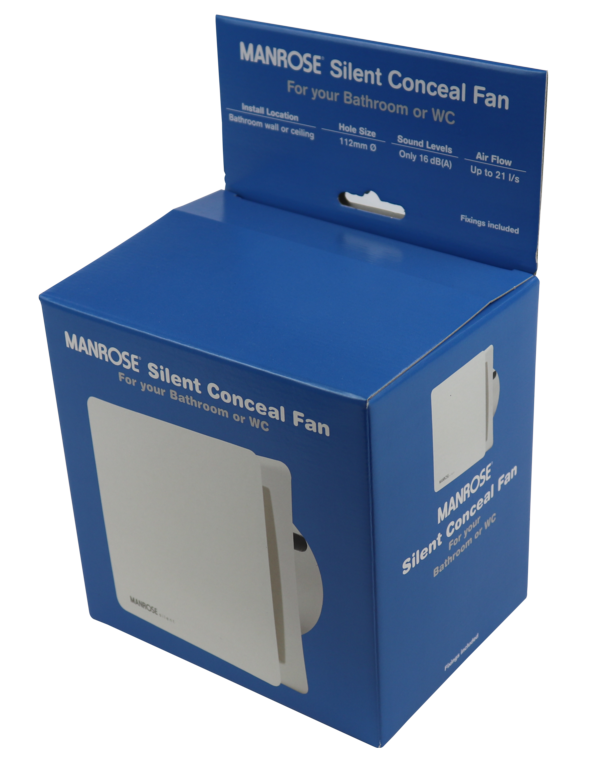

Manrose Silent Fan Conceal Standard

The Manrose Silent Fan Conceal Standard is a premium axial extractor fan designed to offer near-silent operation without compromising performance. Tailored for modern bathrooms, en-suites, and cloakrooms, this unit blends advanced motor technology with an unobtrusive fascia to deliver both style and substance.

This model features two-speed operation, integral backdraught shutters, and a standard wiring configuration for remote switching. It's ideal for anyone seeking a high-quality ventilation solution that prioritises noise reduction, energy efficiency, and sleek design.

Key Features & Benefits

• 100mm (4") Silent Axial Fan
  Suitable for most domestic applications such as bathrooms, toilets, and utility rooms.
• Ultra Quiet Operation
  Exceptionally low sound output at just 16dB(A) on low speed, offering near-silent performance.
• Two-Speed Extraction

• • Low Speed: Ultra-quiet 16dB(A)

  • High Speed: Delivers a strong extraction rate of 21 litres per second (75m³/hour)

• Integral Backdraught Shutters
  Prevents unwanted cold air ingress when the fan is not in operation, improving energy efficiency and indoor comfort.
• Low Energy Consumption
  Efficient motor uses only 7 Watts, making it a cost-effective and eco-conscious choice.
• Discreet Concealed Fascia
  Sleek and minimal front panel design that sits flush to the wall or ceiling for a modern finish.
• Remote Switching
  Designed to be wired to a remote switch (e.g. wall switch or lighting circuit), offering straightforward control.

Technical Specifications

Recommended Applications

• Modern bathrooms and en-suites
• Cloakrooms
• Utility or laundry spaces
• Spaces where silent operation is essential (e.g. bedrooms adjacent to bathrooms)

Installation Guidance

• Suitable for connection to a wall-mounted or lighting circuit switch.
• Can be installed on walls or ceilings using standard 100mm ducting.
• For external venting, pair with a suitable grille and ducting kit (sold separately).
• Installation should be carried out by a qualified electrician and in accordance with local building regulations.

Frequently Asked Questions (FAQs)

Q: Does this fan have a timer function?
A: No, this is the standard model designed for remote on/off switching. If you need an overrun timer, choose the Manrose Silent Fan Timer Model.

Q: How do I select the fan speed?
A: The fan speed (low or high) is selected during installation via an internal jumper or terminal connection.

Q: Is this fan suitable for use in a shower area?
A: This fan is not rated for use in shower zones. For Zone 1 or 2 installations, choose a model with an IPX5 rating.

Q: Can the fascia be painted to match wall colour?
A: The fascia is a plastic finish and not designed for painting. If required, painting should only be done using plastic-safe paint after proper surface preparation.

Q: Does this fan run continuously?
A: No, this is a standard intermittent-use fan and should be operated manually or via a wall switch.

Warranty & Aftercare

• Manufacturer Warranty:
  Covered by a 3-year guarantee or 30,000-hour motor life, whichever comes first.
• Servicing & Support:
  Manrose provides full UK-based technical and warranty support. Proof of purchase is required for claims.
• Maintenance Tips:

• • Clean the fascia periodically using a soft, dry cloth.

  • Ensure the ducting and backdraught shutters remain clear of dust or blockages.

  • Avoid the use of harsh chemical cleaners on the casing.

Why Choose the Manrose Silent Conceal Range?

The Manrose Silent Conceal series represents the perfect balance between low noise, strong performance, and modern design. Trusted by electricians, developers, and homeowners alike, Manrose products are known for their quality manufacturing and reliable aftercare.
